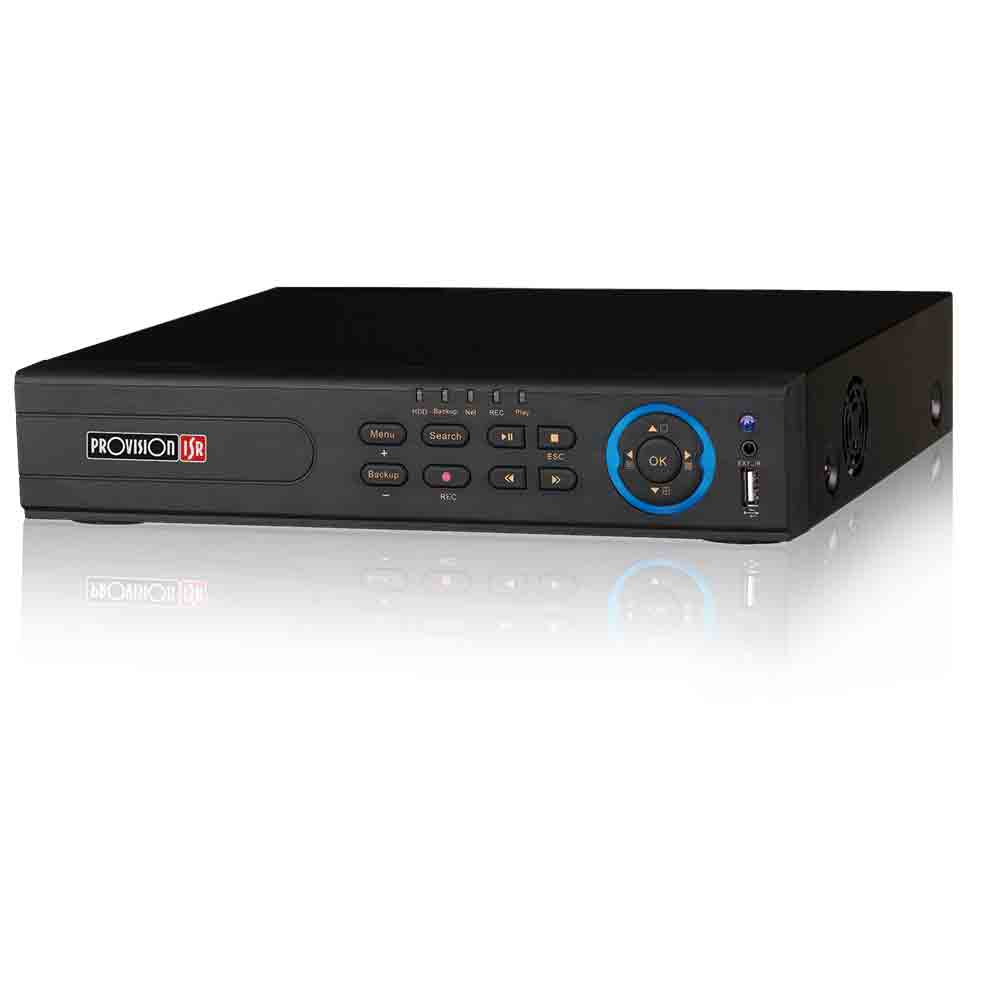

מערכות הקלטה DVR היברידית SA-16200AHD-2L
-
Video:
Input: 16 Channel AHD / Analogue (BNC) + 2 Channel IP (Over Network)
Output: VGA: 1024×768 CVBS: CVBS / Spot
HDMI: 1920×1080 - Recording:
16CH 1080P Lite AHD/Analogue + 2CH 960P IP
AHD: 1080P Lite
FPS: 200 (PAL) / 240 (NTSC)
Resolution: 928×1072 (PAL/NTSC)
(Digitally Upscaled to 1920×1080)Analogue: 960H
FPS: 400 (PAL) / 480 (NTSC)
Resolution: 960×575 (PAL) / 960×480 (NTSC)IP: 960P
FPS: 50 (PAL) / 60 (NTSC)
Resolution: 1280×960 (PAL/NTSC) - Playback:
8 Channel Simultaneously
- Audio:
Input: 1 Channel (RCA)
Output: 1 Channel (RCA)
2 Way audio - Storage:
1 x SATA (Up to 6TB)
- Network:
RJ-45: 100Mbps
- USB Port:
2 x USB2.0
-
PTZ / Keyboard:
1 x RS485
(Protocol: Pelco DP/Samsung/Visca (IP Over ONVIF
